Static Tray Dryer for Pasta
| Technical Specification | Details |
|---|---|
| Heating Power Load | 6 kw |
| Capacity | 250 – 300 kg/ batch |
| AC Motor for air circulation | 0.5 HP,09 no.(Reputed Co.) |
| AC Blower | 0.25 HP for humidity exha |
| No. of Tray | 80 Trays X 4 kg = 320 kg |
| Size of Tray | 24 X 36 inches |
| No. of trolley | 4 no. X 20 tray = 80 tray |
| Material of Tray | Woodan with SS wire mess |
| Material of Trolley | Mild steel with 3 inch wheel |
| Material of construction | Painted Mild steel |
| Temperature Controller | Yes, Set as per product |
| Humidity Controller | Yes, Set as per product |
| Timer | Yes, Set as per product |
- Description

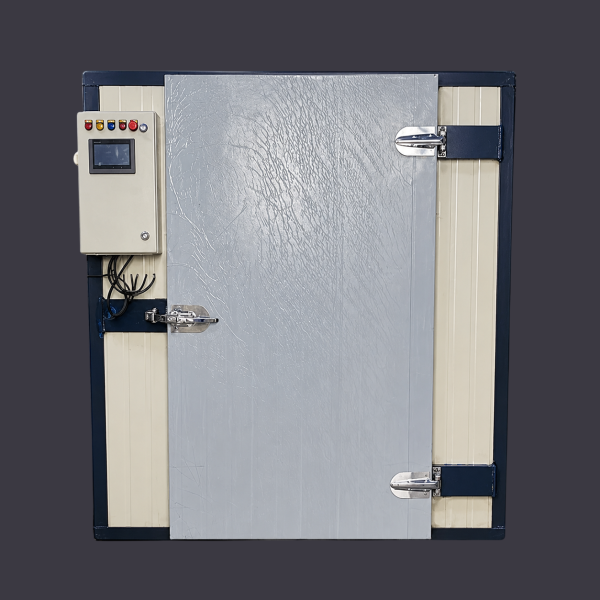

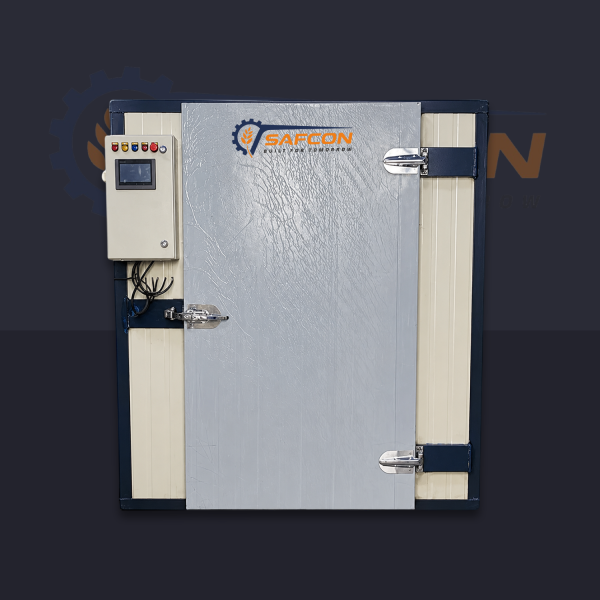

Static Tray Dryer for Pasta – Batch Drying Machine Manufacturer in Noida
Drying decides the final quality of your pasta. If moisture stays high, pasta turns sticky, spoils early, and breaks during packing. If it dries too fast, it cracks and loses color and texture. The Static Tray Dryer for Pasta by Safcon Food Machines delivers uniform batch drying with full control over temperature, humidity, and time, so every batch comes out consistent.
What Is a Static Tray Dryer for Pasta?
A static tray dryer for pasta is a closed, insulated drying chamber. Freshly extruded pasta is spread on trays and stacked on trolleys inside it. An electric heating system generates hot air, and circulation motors spread it evenly across every tray, while an exhaust blower removes humid air from the chamber.
The product stays stationary, so delicate shapes like macaroni, penne and vermicelli dry gently without damage. When the cycle ends, the trolleys are rolled out and the next batch goes in. This makes it a practical choice for small and medium pasta manufacturers.
Key Benefits
Uniform drying: Nine circulation motors push hot air evenly across all trays, which reduces uneven moisture and cracking.
Full parameter control: Temperature, humidity and timer can be set separately, so you can adjust the cycle for each product.
Easy batch handling: The rollout trolley system makes loading, unloading, and cleaning fast. You can load one set of trolleys while another batch is being unloaded.
Hygienic design: The closed chamber protects the product from dust and contamination during drying.
Compact footprint: 80 trays on 4 trolleys give high loading capacity without needing a large factory floor.
What Can You Dry in This Machine?
This machine is not only for pasta. You can also dry:
- Macaroni, penne and other pasta shapes
- Vermicelli and noodles
- Papad and fryums
- Dry fruits and nuts
- Snack products that need controlled moisture removal
Why Choose Safcon Food Machines?
Safcon Food Machines Pvt. Ltd. is a direct manufacturer based in Noida, Sector 8. Because there are no middlemen, you get factory pricing and faster support. Our team helps with installation, operator training and spare parts, and serves Noida, Delhi NCR and the rest of India.

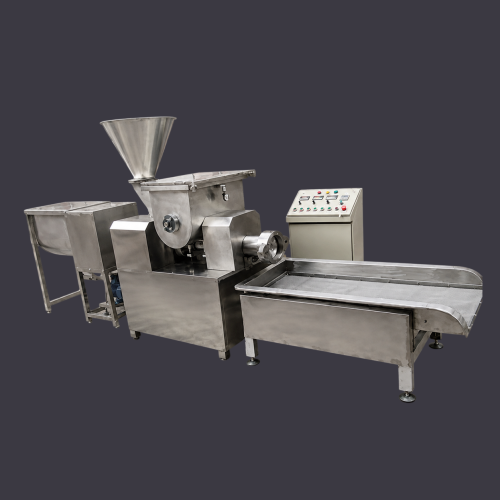

If you are also setting up a complete pasta line, you can pair this dryer with our automatic pasta making machines for a full plant solution.
Get a Quote for Your Static Tray Dryer for Pasta
Tell us your pasta type, daily production target and available space, and we will recommend the right setup. Call +91-9457472321 or click Enquire Now for a free quote.
FAQs
1. What is a static tray dryer for pasta?
It is a batch drying machine in which pasta is loaded on trays inside an insulated chamber. Hot air circulates over the stationary product to remove moisture evenly.
2. What is the price of a static tray dryer for pasta?
The price depends on capacity, number of trays and customization. Safcon offers direct manufacturer pricing. Call +91-9457472321 or send an enquiry for a quotation.
3. What is the capacity of the Safcon static tray dryer?
It handles 250–300 kg per batch, with 80 trays of about 4 kg each across 4 trolleys.
4. How long does pasta take to dry in a tray dryer?
Drying time depends on pasta shape, thickness, starting moisture and the temperature set. The built-in timer lets you set the exact cycle for your product.
5. What is the difference between a static dryer and a continuous pasta dryer?
A static dryer works in batches and gives more control, which suits small to medium production. A continuous dryer moves product non-stop and suits very high-volume lines.
6. How much electricity does a static tray dryer use?
This model has a 6 kW heating load, nine 0.5 HP circulation motors and a 0.25 HP exhaust blower. The insulated chamber helps retain heat and reduce energy use.
7. Can I dry products other than pasta in it?
Yes. You can dry vermicelli, noodles, papad, fryums, dry fruits and snack products by changing the temperature, humidity and time settings.
8. Is a static tray dryer suitable for a small pasta business?
Yes. It gives a good batch capacity in a compact setup, without the heavy investment a continuous dryer line needs.
9. What are the trays and trolleys made of?
Trays are made of wood with SS wire mesh. Trolleys are mild steel with 3-inch wheels for easy movement.
10. Where can I buy a static tray dryer for pasta in India?
You can buy it directly from Safcon Food Machines, Noida, which supplies and installs across Delhi NCR and pan-India.
